HKS GT2 SUPERCHARGER KIT : TOYOTA 86 / SUBARU BRZ (ZN6/ZC6 FA20)
HKS GT2 SUPERCHARGER KIT : TOYOTA 86 / SUBARU BRZ (ZN6/ZC6 FA20)
Couldn't load pickup availability
Code No. 12001-AT012
※Oil Cooler is not included in this kit.
FR sports car "86 & BRZ" was launched in tremendous popularity of ecologically-friendly cars. HKS has been released various tuning parts for "86 & BRZ." Among HKS' 86 & BRZ parts, the supercharger kit has been redesigned.
The efficiency improved by layout change of piping around the throttle and utilizing a bigger size intercooler.
Compared to stock, 35% higher output and 45% higher torque are achieved. Fuel Upgrade Kit for higher engine output is available for engine output of over 300PS.
For the owners of the conventional Supercharger kit, Intercooler Upgrade Kit is available to convert the existing kit to new version.
【Features】
- Using the stock air cleaner enables sound isolation of the supercharger; the quietness is dramatically improved.
- Each HKS GT2 Supercharger System is a vehicle-specific design. All parts necessary for installation are included. (An engine management system is required separately.)
- Free to select the engine management tool. (For JDM vehicles, Flash Editor including the data for this Supercharger Kit is available for easy data rewriting.)
【Performance】
Power | Torque | |
HKS GT2 S/C STEP2 (S/C Pro + Fuel up + Flash) | 302PS | 32.2kg-m |
HKS GT2 S/C STEP1 (S/C Pro + Flash) | 249PS | 29.7kg-m |
Conventional + Flash | 220PS | 25.6kg-m |
Normal | 184PS | 20.3kg-m |
* These data were the results of in-house test. The results may vary depending on the weather, measuring equipment, etc.
(Test Vehicle: 86 (ZN6 A) MT)

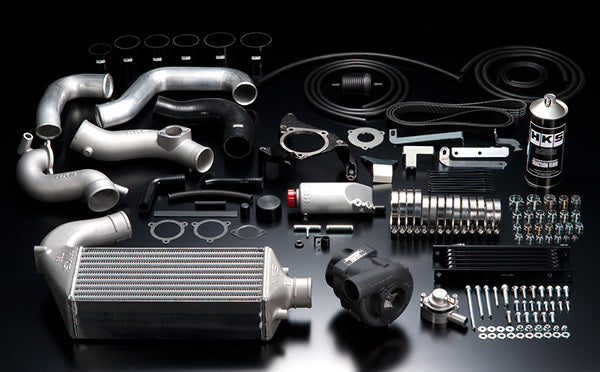

【KIT Parts】
GT2 S/C Pro | I/C UP | Fuel UP | |
Supercharger Assy | ○ | × | × |
S/C Traction Parts | ○ | ○ | × |
S/C installation Bracket | ○ | ○ | × |
Suction Pipe | ○ | ○ | × |
Intercooler ASSY | ○ | ○ | × |
Intercooler Pipe | ○ | ○ | × |
Bracket, etc. | ○ | ○ | × |
Injector | × | × | ○ |
Restrictor | φ39 | φ39 | φ43 |
Fuel UP GRADE kit
Flash Editor
(Available only for JDM Vehicle)
【Notice for Installation】
- It is recommended to use with the engine oil cooler and engine oil which high temperature viscosity is more than 40.
- Minor modification of the bumper reinforcement and radiator support.
- Required installation time is about 8 hours.
●INTERCOOLER UPGRADE KIT
Vehicle | Model | Engine | Year | Code No. | Remarks |
86/BRZ | ZN6/ZC6 | FA20 | 12/4- | 13001-AT007 | Some factory parts such as an air cleaner are required. |
●FUEL UPGRADE KIT
Vehicle | Model | Engine | Year | Code No. | Remarks |
86/BRZ | ZN6/ZC6 | FA20 | 12/4- | 14007-AT001 | Data for this kit must be obtained by actual vehicle's setting. |
●FLASH EDITOR
Vehicle | Model | Engine | Year | Code No. | Remarks |
86/BRZ | ZN6/ZC6 | FA20 | 12/4- | 42015-AT104 | Available only for JDM vehicle. |
IMPORTANT INFORMATION ABOUT PRICING & AVAILABILITY
~ This is a SPECIAL ORDER item. Although we do our best to ensure accurate pricing there are changes that affect current pricing that we may not be aware of at the time of advertising. Pricing may change without notice. Estimated delivery lead-time is expect to be 4-6 weeks after ordering. To discuss current pricing and delivery lead-times please feel free to reach out to us.
