GREDDY PROFEC MAP

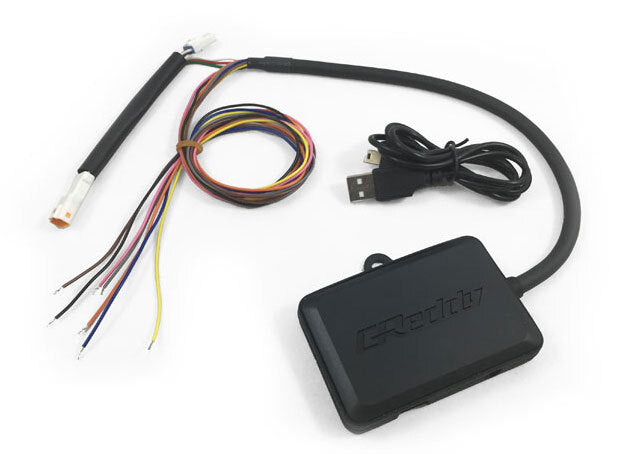

GReddy Profec MAP for Profec Boost controller

The GReddy Profec MAP connects to the current GReddy Profec and, through boost maps, provides even finer control over your vehicle’s boost pressure. Boost correction is not the only added function in the addition of the Profec MAP! The following features have been added:

• All parameter settings can be set by PC via USB cable (sold separately)
• For use with GReddy Profec Boost Controller (GReddy #15500214, 15500219 or 15500217 sold separately)
• Expand boost control with additional parameters (free Software)
• Boost Map Correction – Fine boost tuning settings via 10×10 boost maps (Load vs Duty %)
• Display Gear Position, Speed, RPM, Engine Temp and Throttle Position
• Back-light dimming and scramble boost switching functions

This unit brings out the full performance of the GReddy Profec through its high-level functions that result in a more advanced boost.

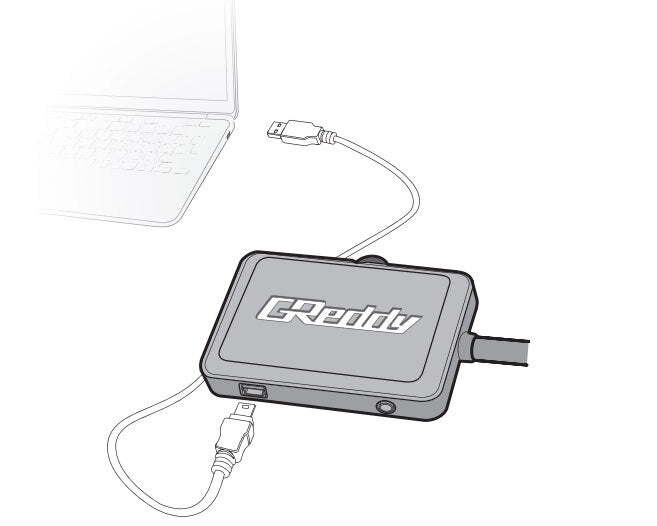

PC Connection

By using the USB cable (sold separately) and connecting to a PC all parameter settings and data logging features can be accessed.

■Boost Map Correction

Fine boost tuning settings are possible by the usage of the 10×10 boost maps.

■Boost Correction based on RPM, Throttle, Speed, Gear Position and Water Temp.

Boost Correction can be based off of any of the above 5 items.

▼Example 1:Boost can be lowered automatically if the engine is not in the defined ideal operating temperature range.

▼Example 2:：Using the Gear Position, Boost can be set differently for each gear and RPM. This feature can be applied to ensure consistent boost in any gear and to suppress undesired wheel spin when in low gears.

■AUX input for switching system

Take advantage of the auxiliary input to activate the scramble Boost function (Switching Harness sold separately) and to change boost on the fly!

Boost Correction by RPM, Throttle Position, Speed, Gear Position, or Water Temp

Additional Profec monitoring and data logging via PC software

AUX input for Over Take Boost Function future using optional Remote Switching System

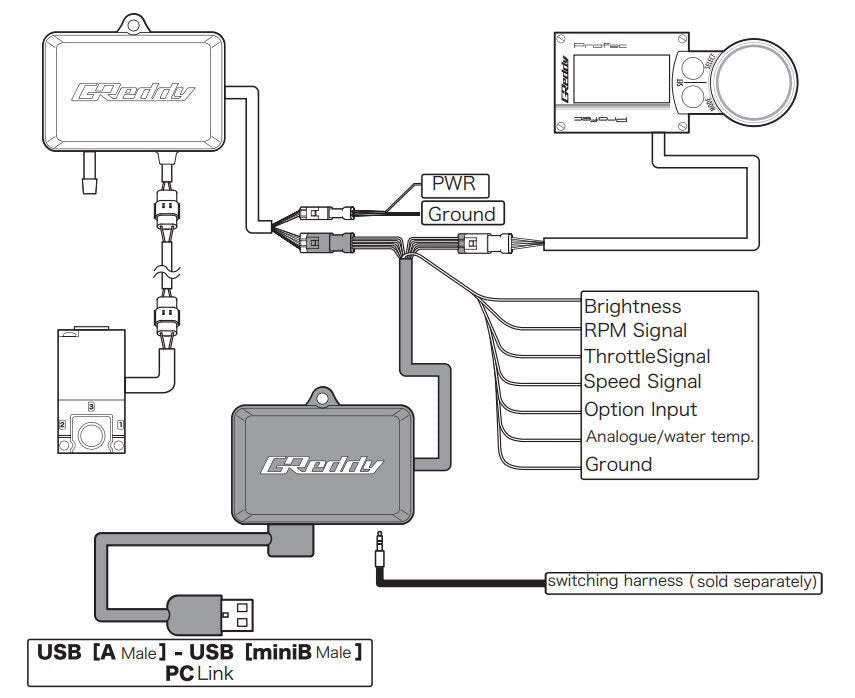

Plugs-in easily in between Profec Display/Control unit and Profec main unit
Additional connections depending on application.

PC Compatible (Profec MAP software) with use of mini-USB to USB cable (sold separately)
OS: (Japanese, English) Windows Vista, Windows 7 (32bit, 64bit)
CPU: 1GHz or more 32bit or 64bit processor
Memory: 1GB or more
HDD free space: 20MB or more
